Passive House detail Drawings

Jan 18

Written By Billy Kehoe

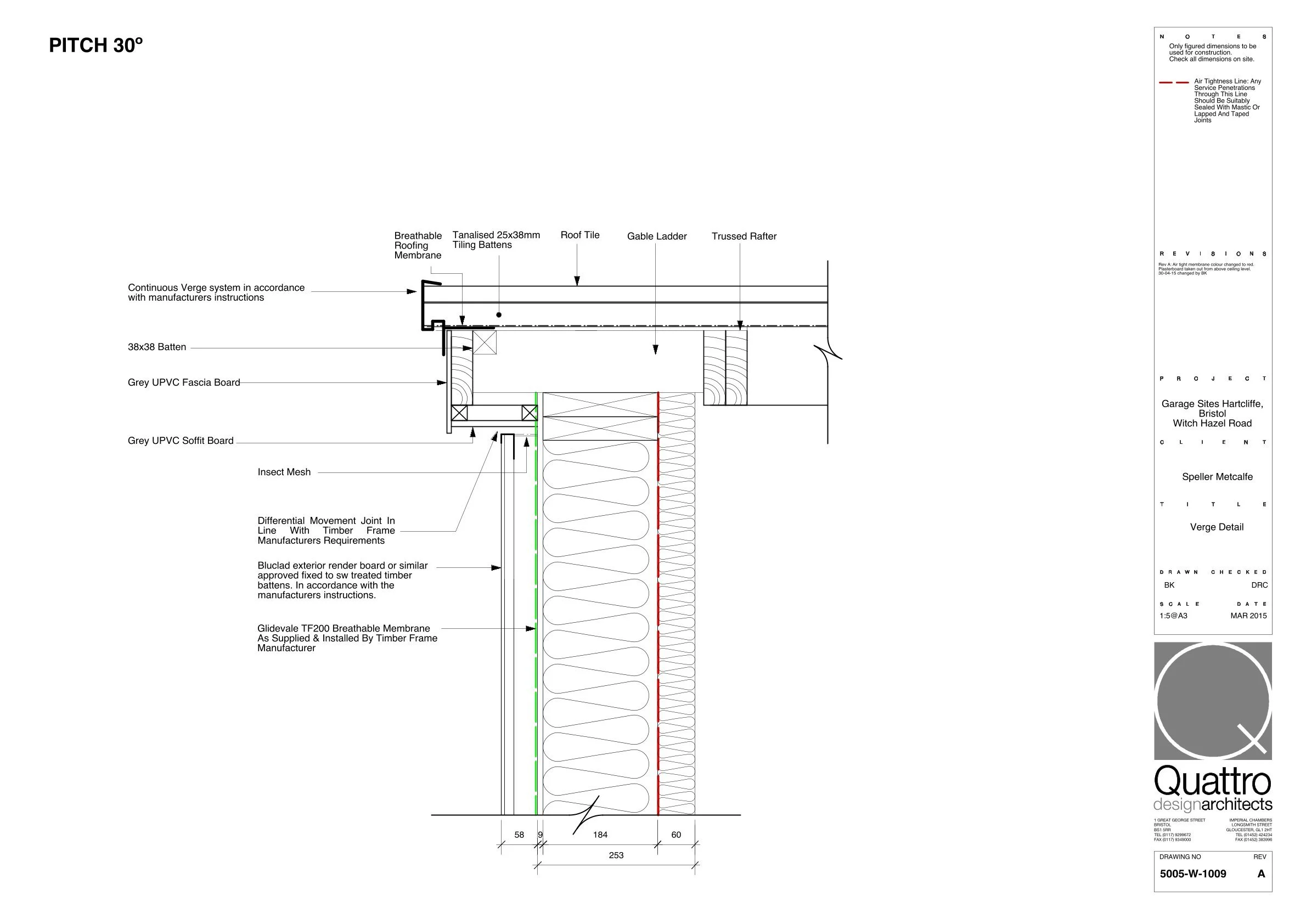

5005-W-1009 Verge Detail v2015.jpg

5005-W-1010 Meter Box Detail v2015.jpg

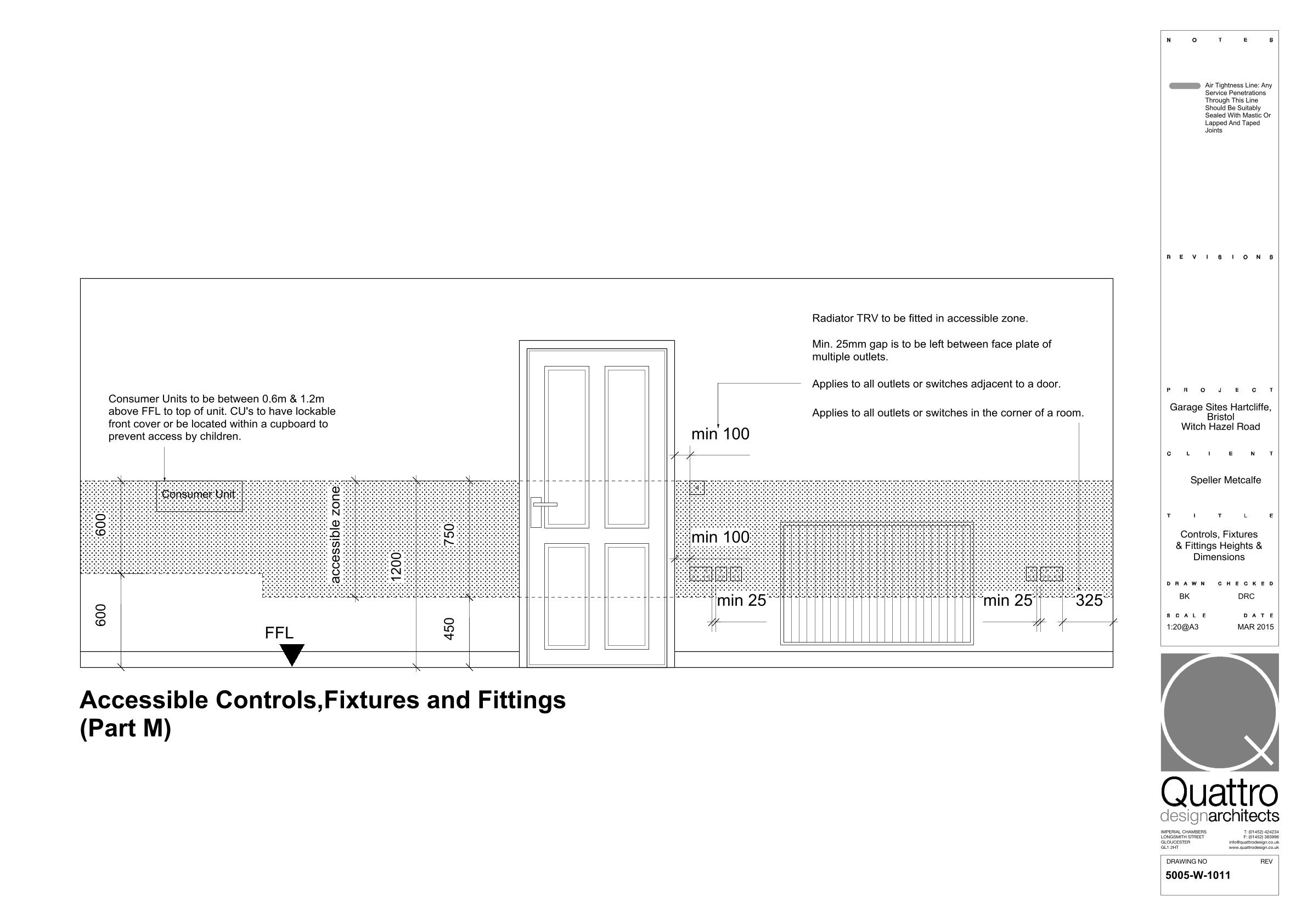

5005-W-1011 Socket Heights and Fittings v2015.jpg

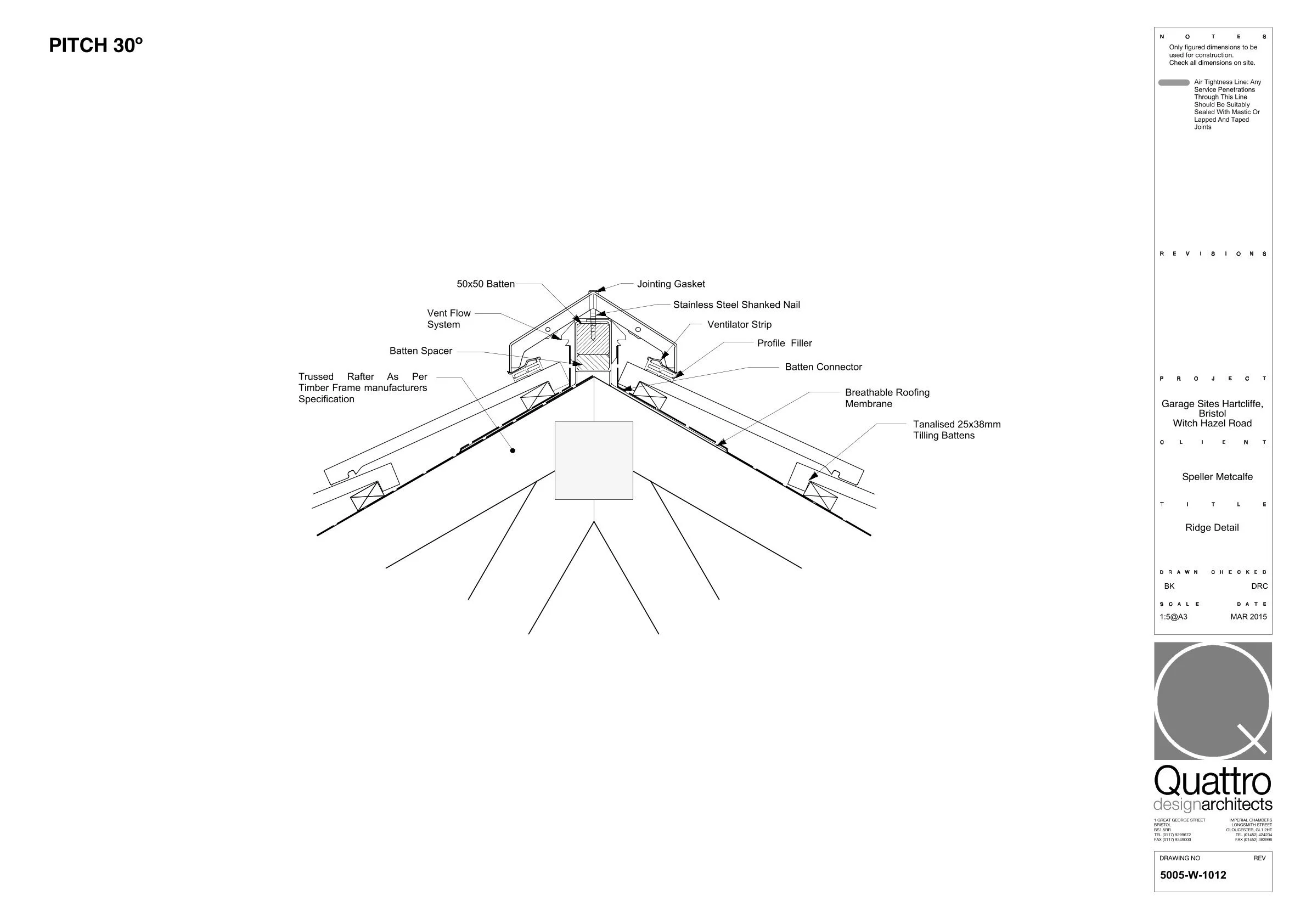

5005-W-1012 Ridge Detail v2015.jpg

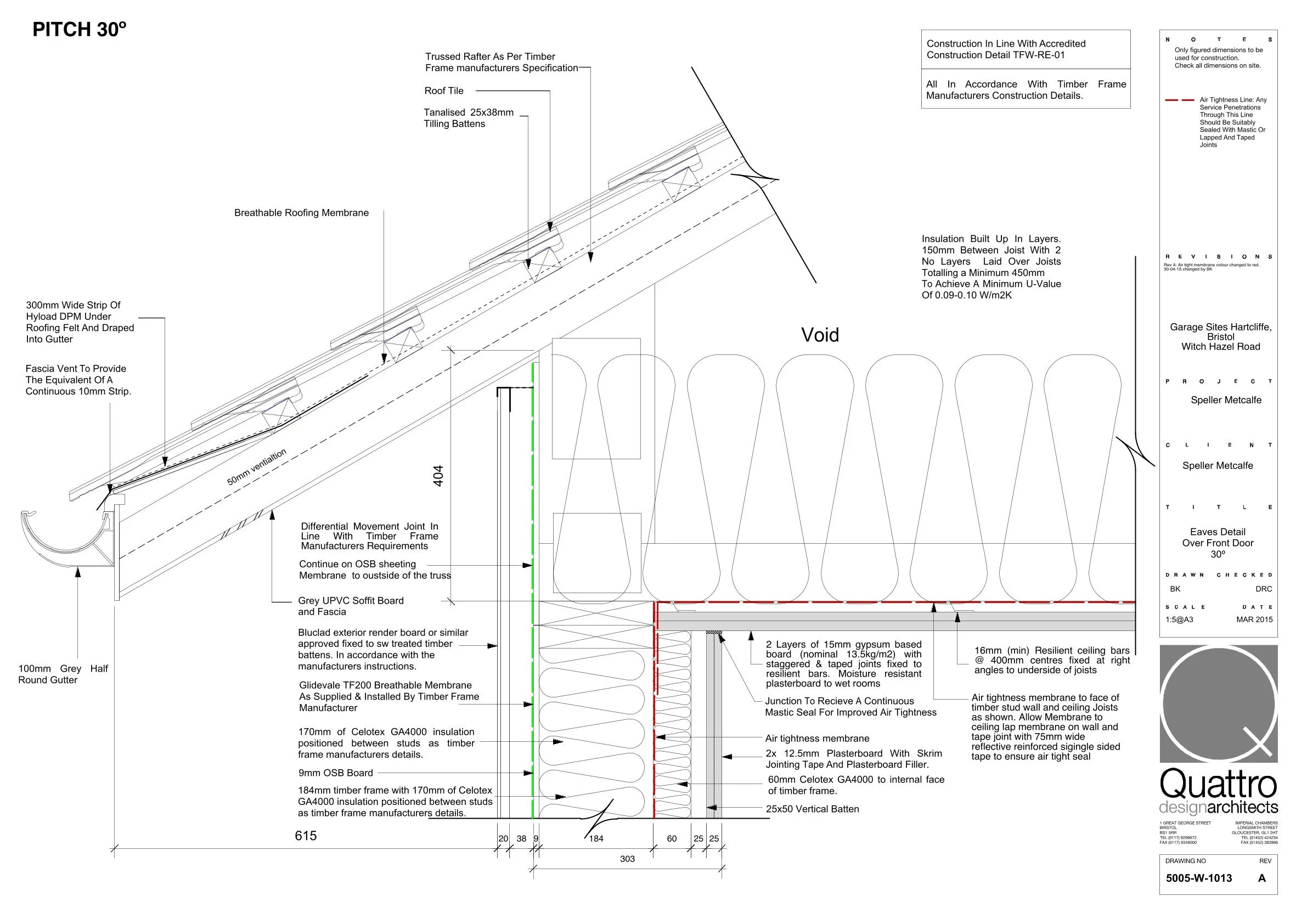

5005-W-1013 Eaves Detail Front Door v2015.jpg

5005-W-1002 Ground Floor_ Party wall .jpg

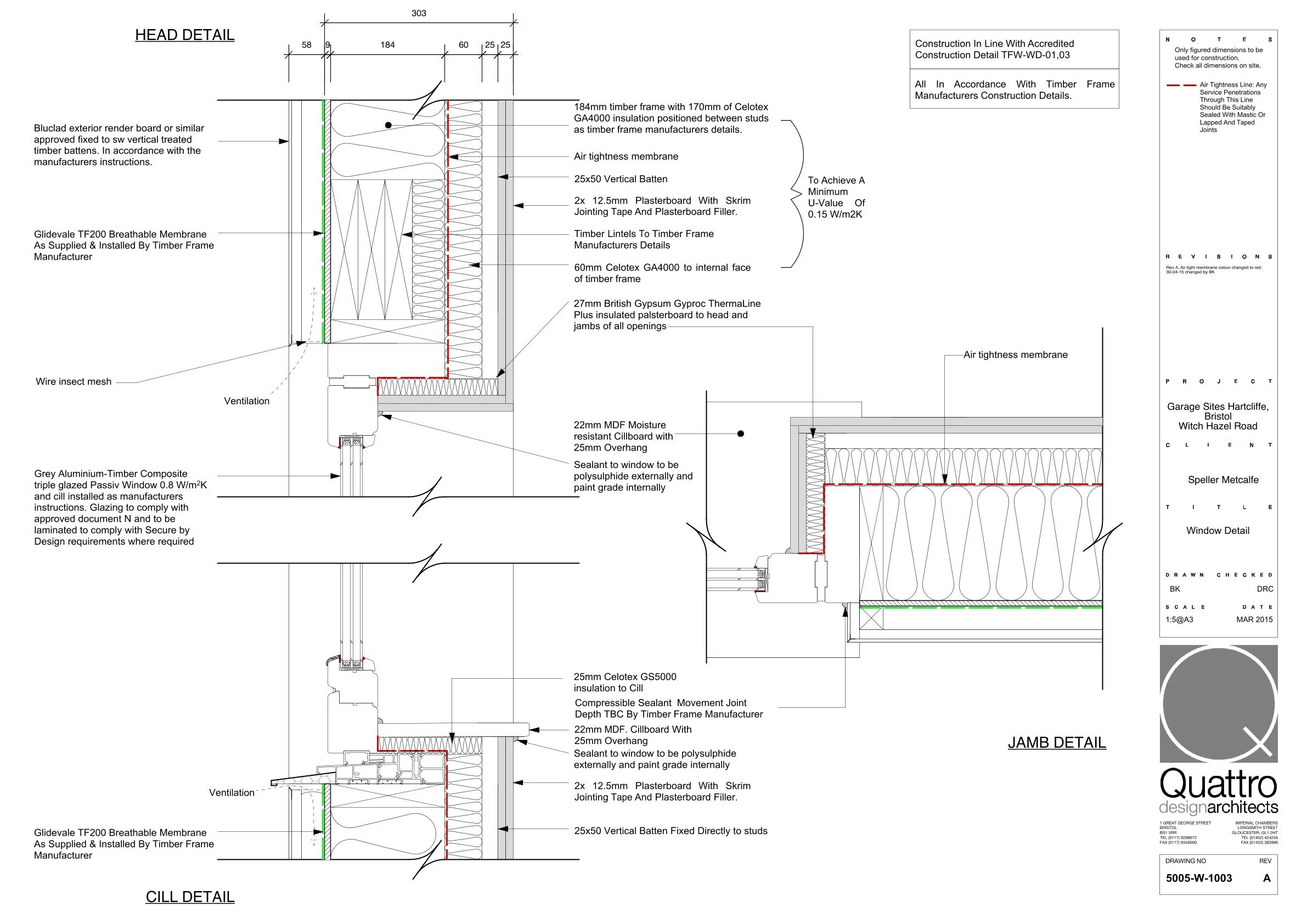

5005-W-1003 Window Detail .jpg

5005-W-1004 FF_Ex Wall Detail v2015.jpg

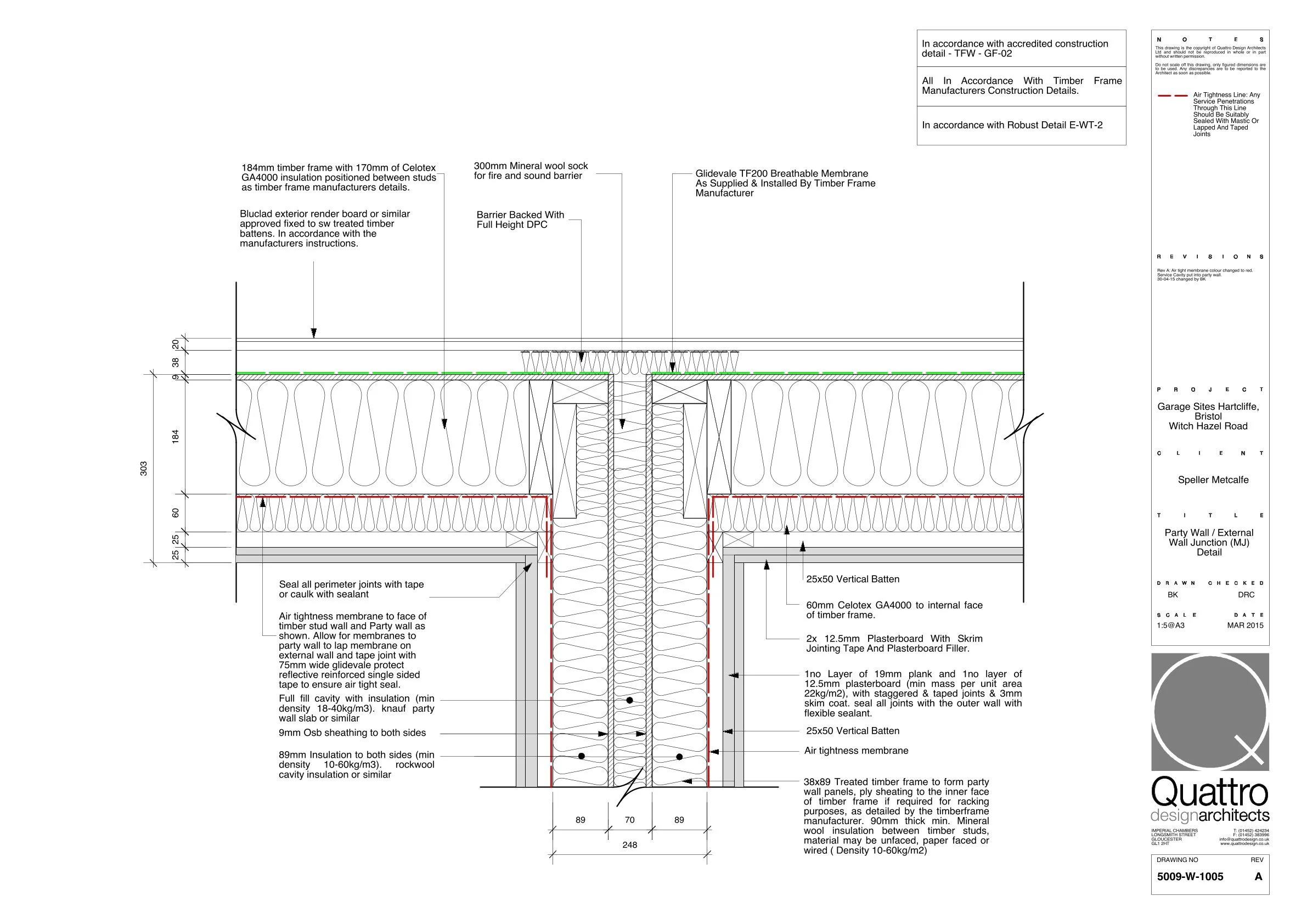

5005-W-1005 Party Wall Ext Wall Junction v2015.jpg

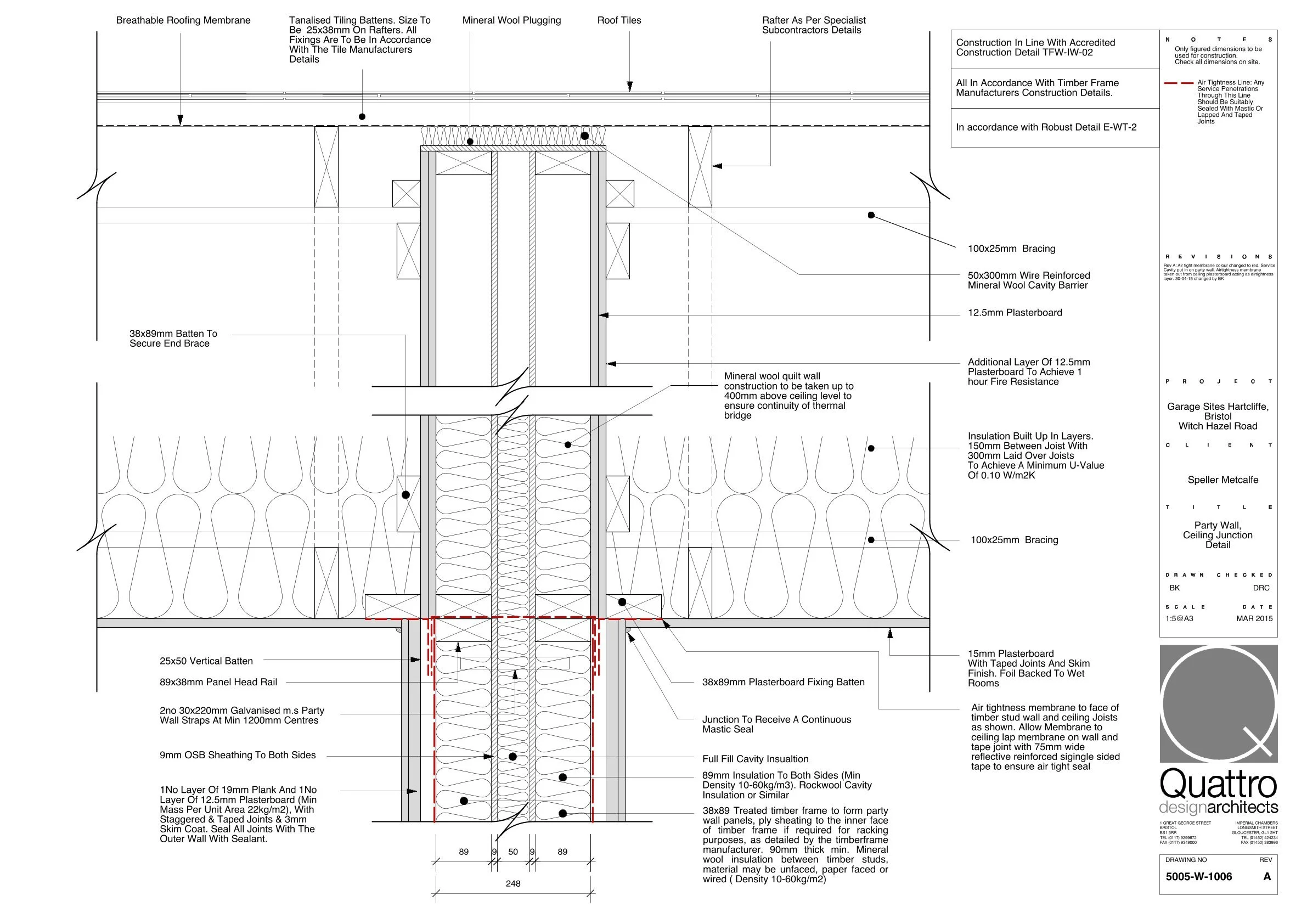

5005-W-1006 Party Wall_Roof Detail v2015.jpg

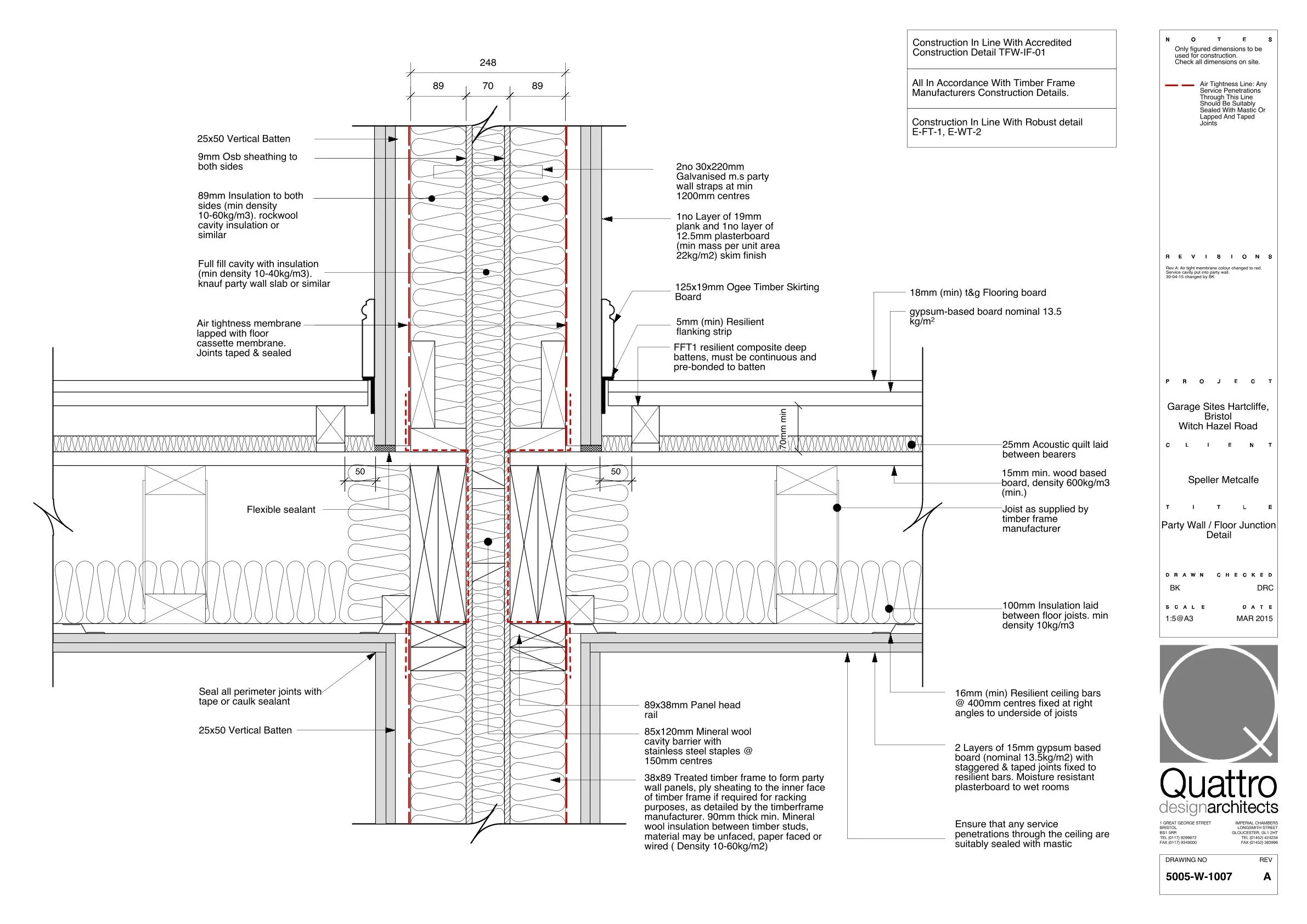

5005-W-1007 First Floor-Party Wall Detail v2015.jpg

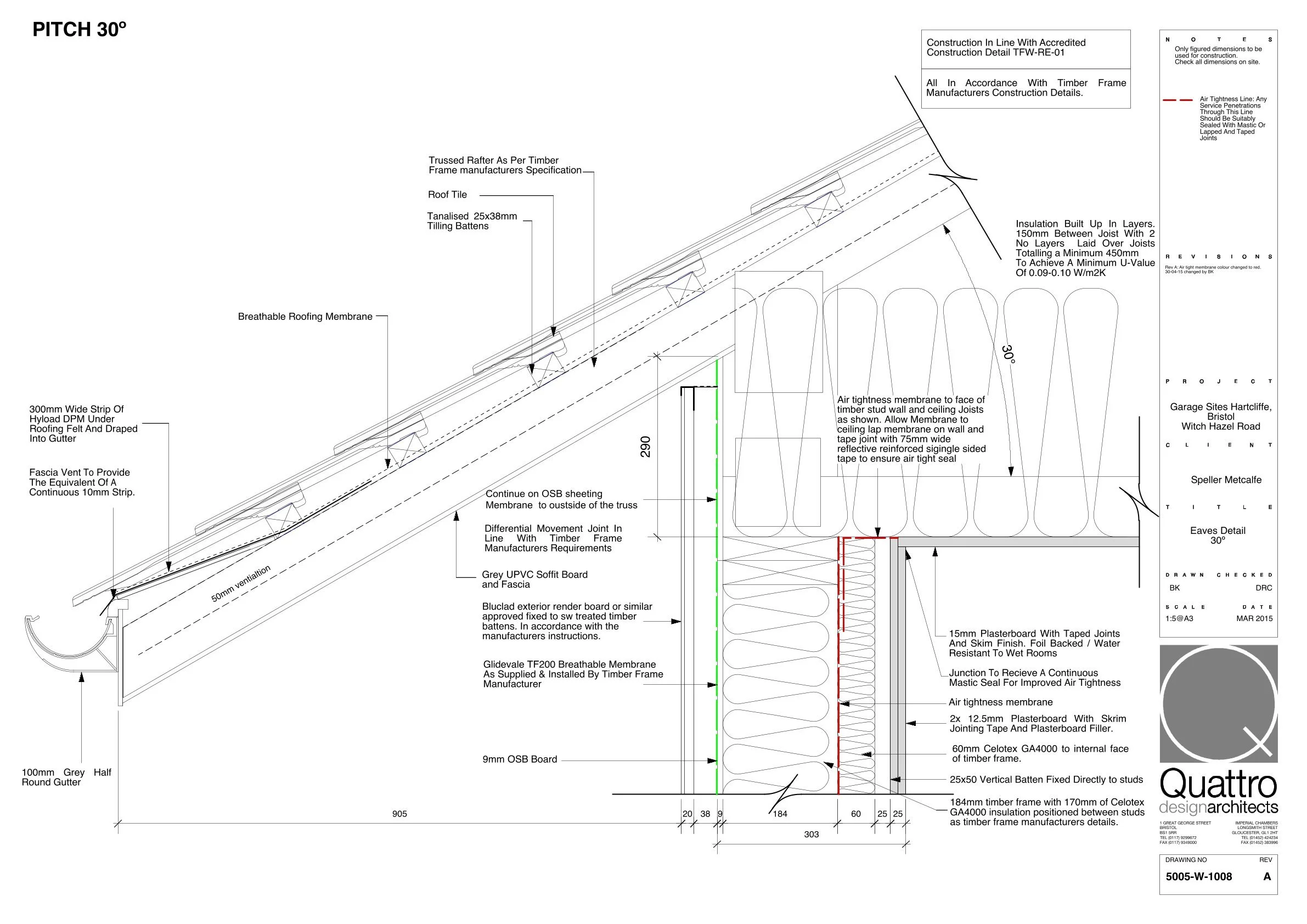

5005-W-1008 Eaves Detail v2015.jpg
